Display Control Panels

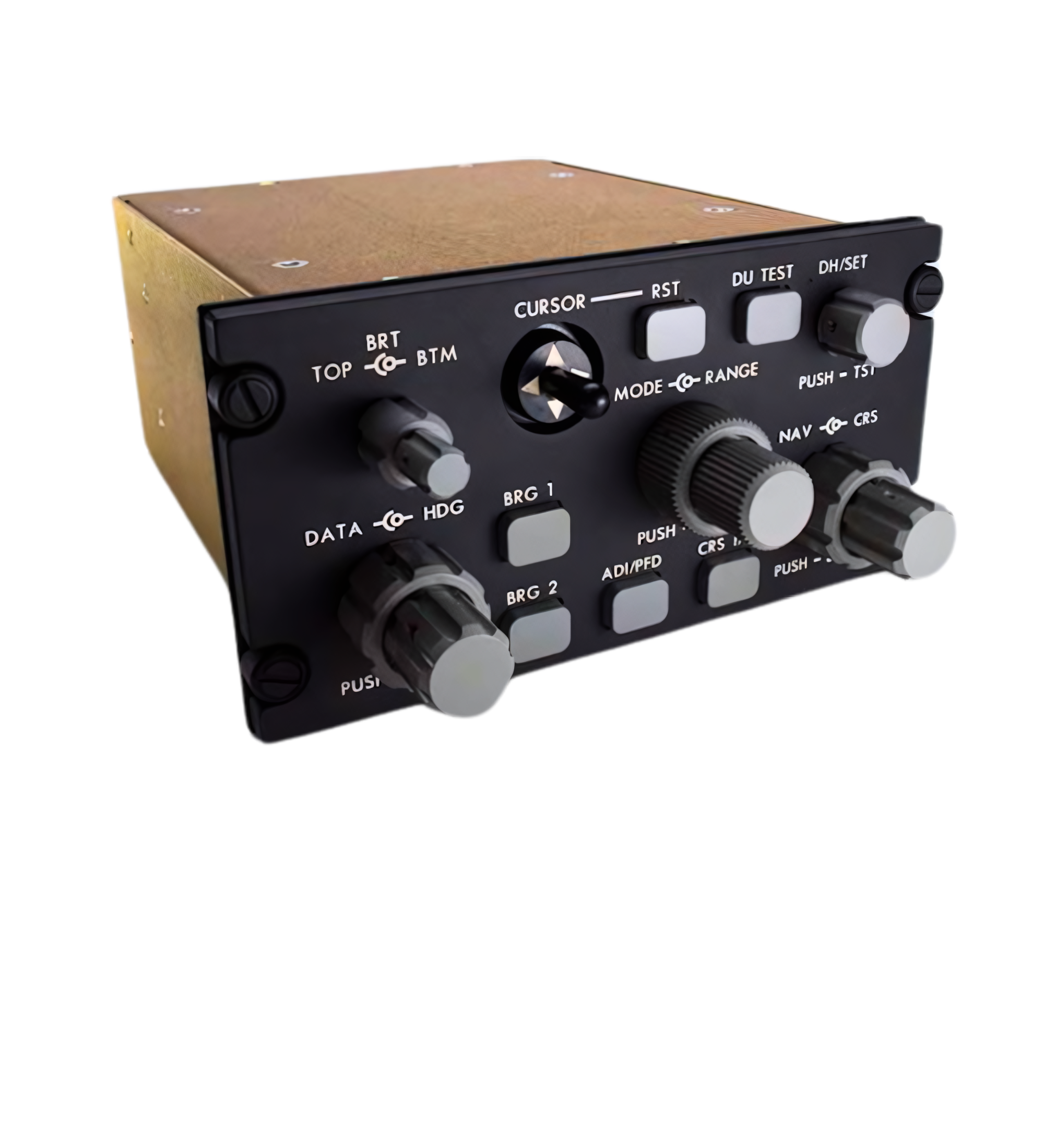

The AvtechTyee 5900 series of configurable, Display Control Panels (DCP) provides the needed customer user interface to Rockwell Collins 5 ATI series of flat panel displays. The DCP program, in conjunction with Rockwell Collins 5ATI displays, provides EFIS functionality to standard and “classic”, electromechanical aircraft and allows a single, configurable baseline design that provides a common fleet solution. There are over twenty five versions of the 5900 series DCPs that all share a common electronic and software core. The only difference is the custom user interface. This philosophy of easy reuse has helped make the Collins 5 ATI program successful.
Features & Benefits
- Design provides a single hardware and software core for all available configurations
- Certified on Air Transport, Helicopter and Military aircraft.
- Military NVIS configurations available
- Accepts both 28 VDC and 115 VAC 400 Hz inputs for maximum aircraft flexibility
- Accommodates the following control functions:
16 momentary push buttons
16 toggle pushbuttons
4 rotary switches
3 rotary select controls
2 pushbutton selects
1 cursor or joystick.
- Accepts a total of four ARINC 429 high speed data bus inputs
- Accepts two ARINC 453 inputs.
- Provides two ARINC 429 outputs and one ARINC 453 output
